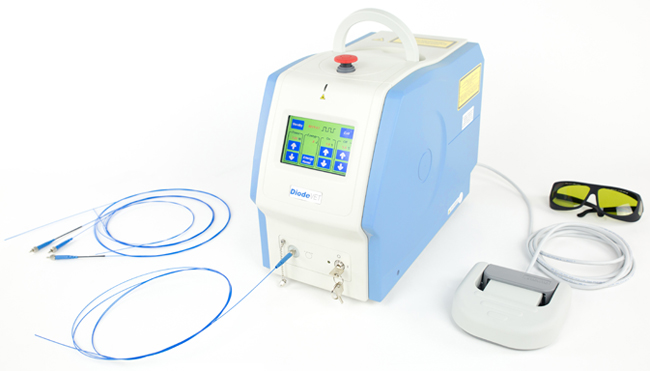

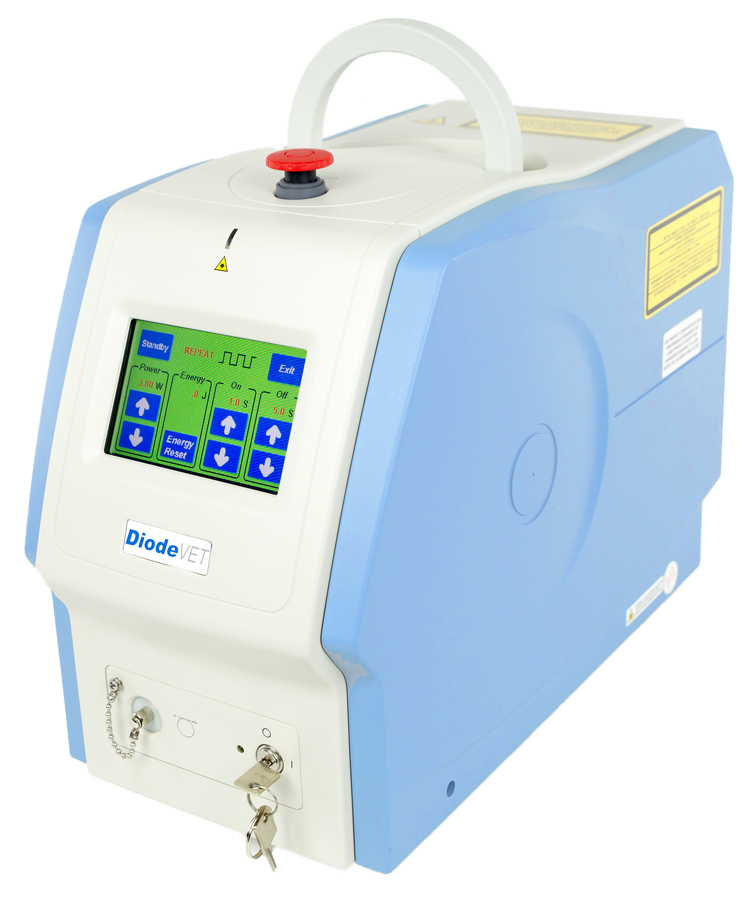

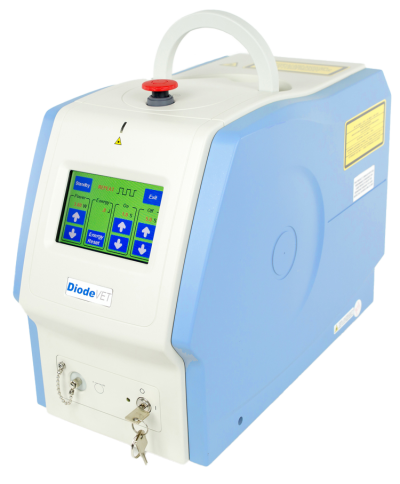

AMC Equine Surgical Diode Laser
Contact for Price
Contact AMC or your Veterinary Distributor for Pricing Information
Diode Surgical Lasers are excellent for cutting and coagulation. With the included hand piece, they can be used for skin surgery. The flexible diode fiber allows for use in an endoscope for internal surgery. The therapeutic hand piece and software presets make it an excellent therapy laser. The AMC Diode Laser has many applications in one design!
Description
These diode lasers are extremely versatile and can be used in three different modalities:
For External Surgery such as Lesion Removal
- The flexible fibers can be placed in a hand piece for direct surgery.
For Internal Surgery
- The flexible fibers can be placed into a catheter and then into an endoscope working channel for internal tissue surgery. These lasers are excellent for equine laryngeal surgery with the Tele-View USB Endoscopes.
For Therapy:
- The flexible fibers can be placed into a therapy hand piece for laser therapy.
The unique 980 nm wavelength provides excellent control of precise tissue ablation of pigmented neoplasia or dysplasia lesions and provides superior homeostasis and coagulation that is not provided with C02 lasers. The light weight, compact design of the lasers makes for convenient ease of use and portability. The state-of-the-art, touch screen display enables simple operator interaction with minimal effort.
Included Accessories:
Specifications
| Feature | Specification |
|---|---|
| Laser Type | Solid State Laser (Class IV) |
| Center Wavelength | 980+/-20 nm |
| Output Power | 30 W |
| Output Port | SMA 905 |
| Output Power Increments | 0.25 Watt |
| Operating Modes | Continuous Wave (CW) Pulsed, (50% duty cycle), 5Hz, 10Hz or 15Hz |
| Emission Duration | Continuous Wave Selectable 0 – 120 |
|
Fiber |
≥ 400µm 0.37NA |
| Aiming Beam | 650+/-10nm (Class IIIa) |
| Audio Warning Signal Level | High, Medium & Low |
| Foot Switch Operation | On/Off |
| Cooling | Thermal Electrically Cooled w/ Forced Air |
| Weight | 18 lbs |
| Dimensions | 16in x 8.5in x 12in |
| Power Requirement | 100 to 240VAC / 50-60Hz |
| Operation Temperature | 0°C to 40°C |
| Storage Temperature | -30°C to 70°C |
