AMC Anesthesia Monitors
Contact for Price
Contact AMC or your Veterinary Distributor for Pricing Information

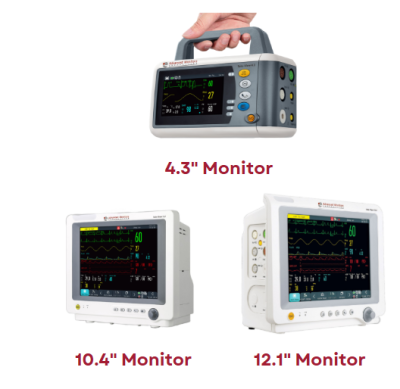

The AMC Anesthesia Monitors come in 3 sizes and provide all of the standard monitoring parameters at an affordable price.
Description
Advanced Monitors Corporation’s Anesthesia Monitors are available in 3 sizes and are a great value. The Standard Socket Configuration is for ECG, SpO2, NIBP, Temperature and EtCO2. The standard leads/connectors that are included with the monitor are ECG, SpO2, NIBP and Temperature.
The EtCO2 connector is optional. The Mini-Monitor can be powered with the electric plug in either 110 volts or 220 volts. The back-up battery gives two hours of usage before it needs to be recharged.
For alarms, it has two alarm indicators, power indicator, battery indicator, QRS beep and alarm and operating key sound. The connections are AC power input, LAN network interface, cable interface and multi-functional connector. It has recall for 200 groups and 48 hour wave recall and 2000 groups for NIBP recall. You can also retrieve 160 hours of trend graphs.
Inside the clinic, the 4.3″ model can be used in areas that have limited shelf space. It can also be easily moved from one area to another. Outside the clinic, it is excellent for mobile/ambulatory use.
Now you can have a multi-parameter monitors at a reasonable price that doesn’t take up substantial space. It is also great for mobile/ ambulatory use.
Features
- Easily Carry From One Location to Another
- Small Footprint
- 3” (10.9cm)
- Only 7.5” x 4.1 “ x 3.2” (19 x 8.2cm x 10.5cm)
- Weighs only 3.3lbs (1.5kgs)
- Standard Leads / Connectors
- 3 Lead ECG
- SpO2 Connector for Tongue
- NIBP with Multiple Cuff Sizes
- Temperature Sensor
- Power Connector
- Optional Leads / Connectors
- EtCO2
- Power
- Battery or 100-240V AC
- Rechargeable Lithium-ion Battery
- Battery Usage: 2 Hours
Monitor Dimensions

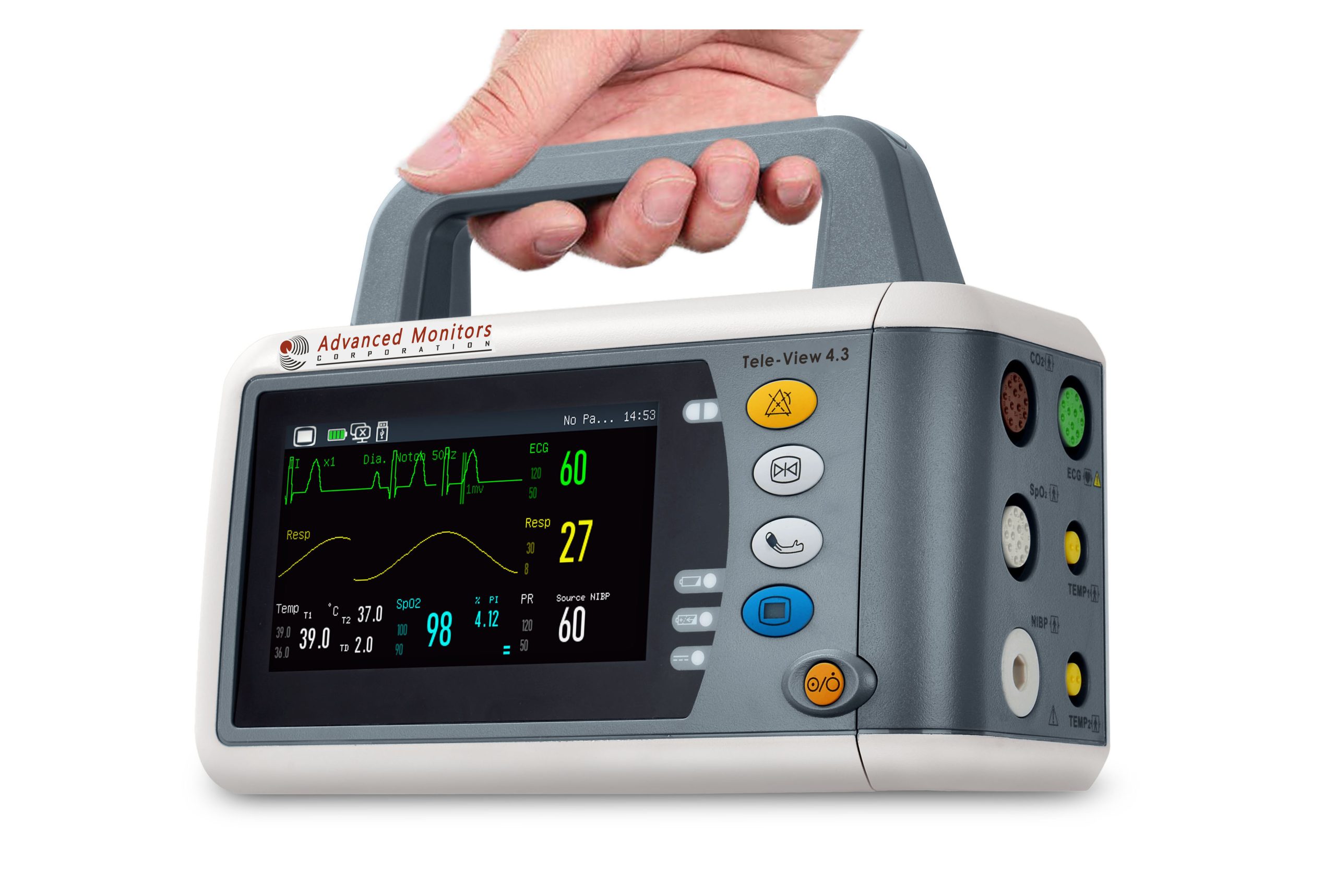

4.3 Inch Model
- Weight: 3.3lbs (1.5kg)
- Size: 190mm x 82mm x 105mm
- Power Supply: Rechargeable Lithium-ion Battery 3.7V

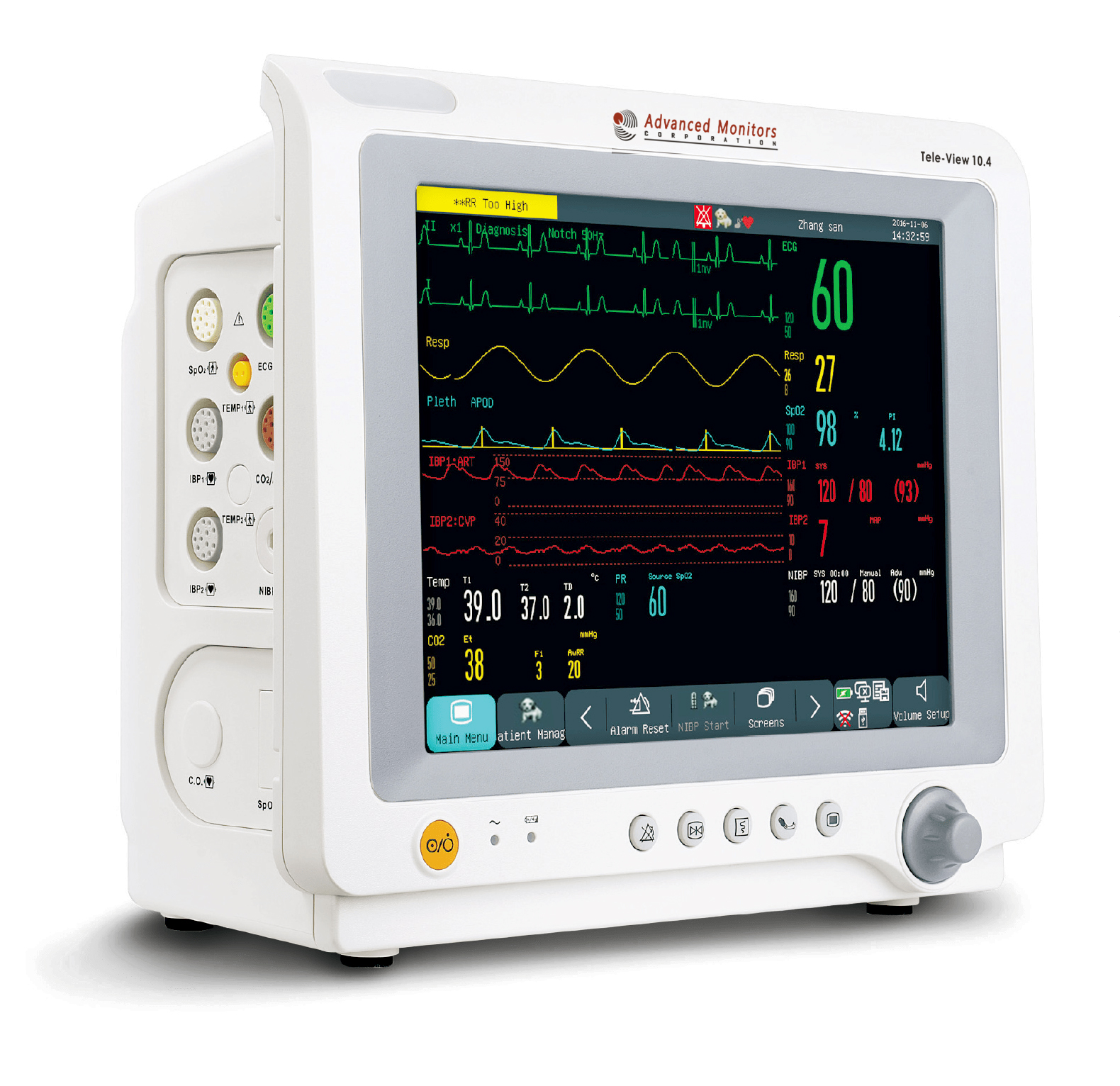

10.4 Inch Model
- Weight: 7.2lbs (3.3kg)
- Size: 291.7mm×250 mm×146.5mm
- Power Supply: Rechargeable Lithium-ion Battery 11.1V

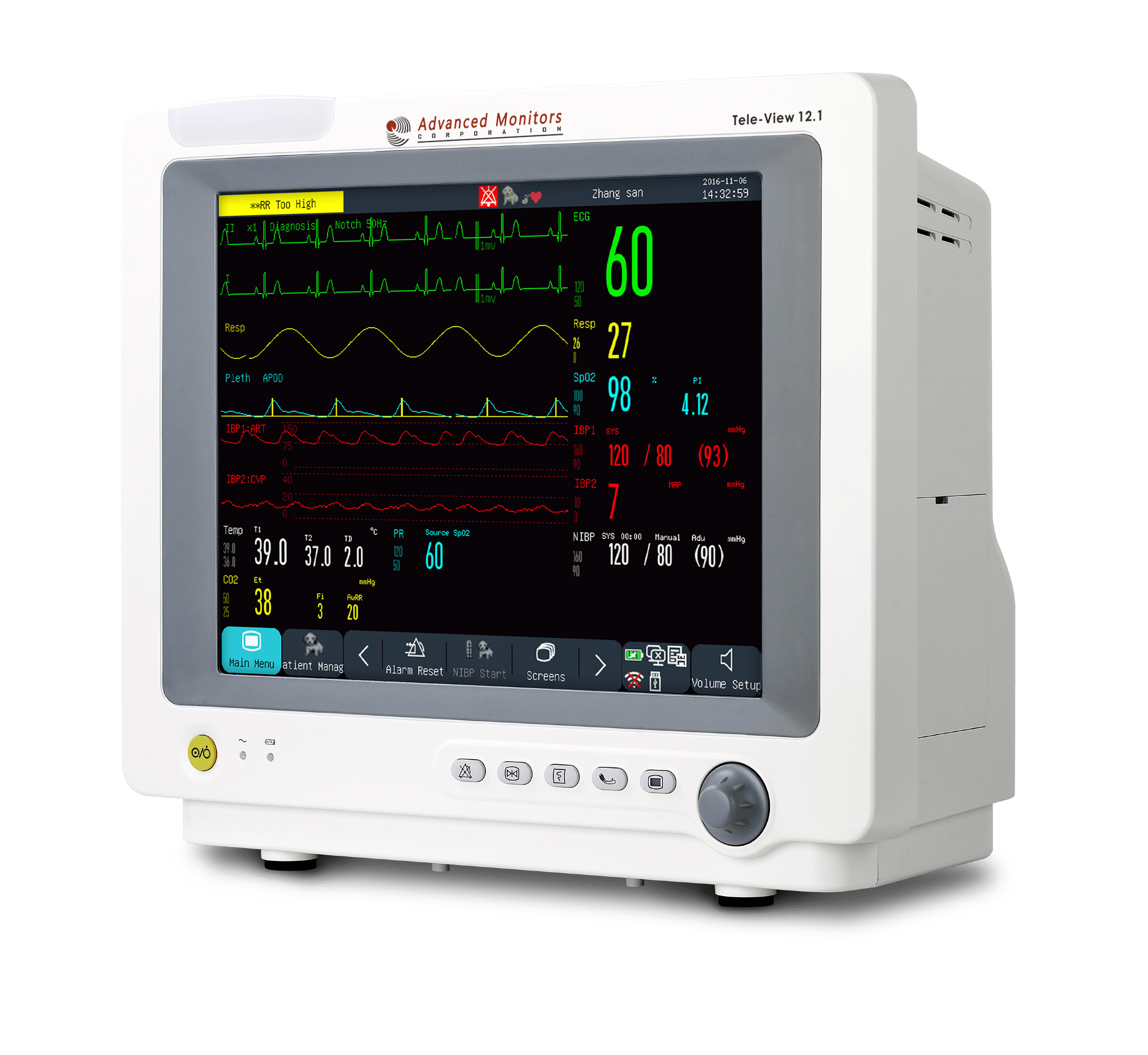

12.1 Inch Model
- Weight: 8.6lbs (3.9kg)
- Size: 344mm x 291 mm x 165mm
- Power Supply: Rechargeable Lithium-ion Battery 11.1V
Specifications
| Feature | Specification |
|---|---|
| Connections | DC Power input RJ45 Network Interface Parameter Cable Interface Multi-functional Connector |
| Data Storage | Wave Recall: 48 hours (8 Waves) NIBP Recall: 2000 groups Trend Graph: 160 hours Trend Table: 160 Hours |
| Respiration Method | RA-LL Impedance Method |
| RR Measurement Range | Horse: 0-120rpm Dog / Cat: 0-150 bpm |
| RESP Apnea | Horse: 10-60s Dog / Cat: 10s – 40s Accuracy: 5s |
| Sweep Speed | 25, 5, 25, 50 mm /s, Error < + 10% |
| Waveform | 3-lead: 2-channel 3-kead: 1-channel |
| Heart Measurement | Horse: 15-300bpm Dog / Cat: 15-350bpm |
| Accuracy | + 1% or + 1bpm (whichever is greater) |
| Measurement Types | Systolic, Diastolic |
| Work Mode | Manual, Automatic & Continual |
FAQs
1. What sizes are available?
The anesthesia monitors are available in three sizes:
- 4.3 inch model
- 10.4 inch model
- 12.1 inch model
2. What parameters does the monitor measure?
The standard socket configuration supports:
- ECG
- SpO₂
- NIBP
- Temperature
- EtCO₂ (optional connector)
3. What leads and connectors are included?
Standard included:
- 3-Lead ECG
- SpO₂ connector for tongue
- NIBP (multiple cuff sizes)
- Temperature sensor
- Power connector
Optional:
- EtCO₂ connector
4. How is the monitor powered?
It can be powered by:
- Rechargeable lithium-ion battery
- 100–240V AC power
The Mini-Monitor supports 110V or 220V electric plug-in.
5. How long does the battery last?
The rechargeable lithium-ion battery provides:
- Up to 2 hours of usage before recharge is needed.
6. What alarm features are included?
The monitor includes:
- Two alarm indicators
- Power indicator
- Battery indicator
- QRS beep
- Alarm sound
- Operating key sound
7. What data storage and recall capabilities does it have?
- Wave recall: 48 hours (8 waves)
- NIBP recall: 2,000 groups
- Trend graphs: 160 hours
- Trend tables: 160 hours
- Recall for 200 groups
8. What are the connectivity options?
Connections include:
- DC power input
- RJ45 network interface (LAN)
- Parameter cable interface
- Multi-functional connector
9. What respiration method does it use?
It uses the RA-LL impedance method.
10. What is the respiratory rate measurement range?
- Horse: 0–120 rpm
- Dog/Cat: 0–150 bpm
RESP apnea settings:
- Horse: 10–60 seconds
- Dog/Cat: 10–40 seconds
- Accuracy: 5 seconds
11. What is the heart rate measurement range?
- Horse: 15–300 bpm
- Dog/Cat: 15–350 bpm
Accuracy:
±1% or ±1 bpm
12. What NIBP measurement types are available?
- Systolic
- Diastolic
Work modes:
- Manual
- Automatic
- Continual
13. What sweep speeds are available?
- 5 mm/s
- 25 mm/s
- 50 mm/s
(Error < ±10%)
Waveform:
- 3-lead: 2-channel
- 3-lead: 1-channel
14. What are the dimensions and weights of each model?
4.3″ Model
- Weight: 3.3 lbs (1.5 kg)
- Size: 190mm × 82mm × 105mm
- Power Supply: 3.7V rechargeable lithium-ion battery
10.4″ Model
- Weight: 7.2 lbs (3.3 kg)
- Size: 291.7mm × 250mm × 146.5mm
- Power Supply: 11.1V rechargeable lithium-ion battery
12.1″ Model
- Weight: 8.6 lbs (3.9 kg)
- Size: 344mm × 291mm × 165mm
- Power Supply: 11.1V rechargeable lithium-ion battery
15. Are the monitors suitable for mobile or ambulatory use?
Yes. The monitors:
- Have a small footprint
- Are lightweight
- Can be easily carried
- Are ideal for mobile/ambulatory use
- Work well in areas with limited shelf space (especially the 4.3″ model)
