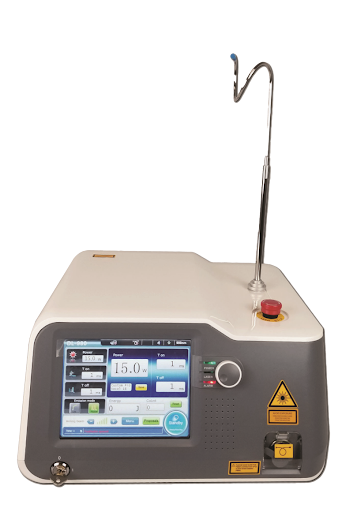

AMC Small Animal Surgical Diode Laser
Contact for Price
Contact AMC or your Veterinary Distributor for Pricing Information
Diode Surgical Lasers are excellent for cutting and coagulation. With the included hand piece, they can be used for skin surgery. The flexible diode fiber allows for use in an endoscope for internal surgery. The therapeutic hand piece and software presets make it an excellent therapy laser. The AMC Diode Laser has many applications in one design!
Description
These diode lasers are extremely versatile and can be used in three different modalities:
For External Surgery such as Lesion Removal
- The flexible fibers can be placed in a hand piece for direct surgery.
For Internal Surgery
- The flexible fibers can be placed into a catheter and then into an endoscope working channel for internal tissue surgery. These lasers are excellent for equine laryngeal surgery with the Tele-View USB Endoscopes.
For Therapy:
- The flexible fibers can be placed into a therapy hand piece for laser therapy.
The unique 980 nm wavelength provides excellent control of precise tissue ablation of pigmented neoplasia or dysplasia lesions and provides superior homeostasis and coagulation that is not provided with C02 lasers. The light weight, compact design of the lasers makes for convenient ease of use and portability. The state-of-the-art, touch screen display enables simple operator interaction with minimal effort.
Included Accessories:
Larger animal see our AMC Equine Surgical Diode Laser
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 18 × 18 × 15 in |
Specifications
| Feature | Specification |
|---|---|
| Laser Type | Solid State Laser (Class IV) |
| Output Power | 30 W |
| Output Port | SMA 905 |
| Output Power Increments | 0.25 Watt |
| Operating Modes | Continuous Wave (CW) Pulsed, (50% duty cycle), 5Hz, 10Hz or 15Hz |
| Emission Duration | Continuous Wave Selectable 0 – 120 |
|
Fiber |
≥ 400µm 0.37NA |
| Aiming Beam | 650+/-10nm (Class IIIa) |
| Audio Warning Signal Level | High, Medium & Low |
| Foot Switch Operation | On/Off |
| Cooling | Thermal Electrically Cooled w/ Forced Air |
| Weight | 28.4 lbs (12.9kg) |
| Dimensions | 16in x 15in x 8in |
| Power Requirement | 100 to 240VAC / 50-60Hz |
| Operation Temperature | 0°C to 40°C |
| Storage Temperature | -30°C to 70°C |
FAQs
1. What types of procedures can these diode lasers be used for?
These lasers are extremely versatile and can be used for:
-
External Surgery: Lesion removal using flexible fibers in a hand piece
-
Internal Surgery: Fibers placed into a catheter and endoscope for internal tissue surgery, ideal for equine laryngeal surgery with Tele-View USB endoscopes
-
Therapy: Fibers placed into a therapy hand piece for laser therapy
2. What wavelength do these lasers use?
They operate at 980 nm, providing precise tissue ablation and superior hemostasis and coagulation compared to CO₂ lasers.
3. What type of laser is this?
It is a Solid State Laser (Class IV).
4. What is the output power?
-
Maximum output power: 30 W
-
Power increments: 0.25 W
5. What operating modes are available?
-
Continuous Wave (CW)
-
Pulsed: 50% duty cycle, 5Hz, 10Hz, or 15Hz
-
Emission duration: Selectable 0–120 seconds (for CW)
6. What fiber specifications are supported?
-
Fiber diameter: ≥ 400 µm
-
Numerical Aperture: 0.37 NA
7. Does it have an aiming beam?
Yes. 650 ± 10 nm (Class IIIa) aiming beam.
8. Are there audio warnings?
Yes. The laser has High, Medium, and Low audio warning signals.
9. Can the laser be foot-operated?
Yes. Foot switch operation allows On/Off control.
10. How is the laser cooled?
It is thermally and electrically cooled with forced air.
11. What are the physical specifications?
-
Weight: 28.4 lbs (12.9 kg)
-
Dimensions: 16 in × 15 in × 8 in
12. What power supply is required?
-
100–240 VAC, 50–60 Hz
13. What are the operating and storage temperature ranges?
-
Operating: 0°C to 40°C
-
Storage: -30°C to 70°C
14. What makes these lasers convenient to use?
-
Lightweight and compact design for portability
-
Touchscreen display for simple, low-effort operation
-
Excellent precision for tissue ablation and coagulation
