Tele-View TV-516 Nasal Endoscope
Contact for Price
Contact AMC or your Veterinary Distributor for Pricing Information
The Tele-View TV-516 Nasal Endoscope is a 1.67mm diameter endoscope that is perfect for use on dog and cat nasal cavities. The Nasal Endoscope has 10,000 fiber image bundle and is an ocular fiber scope. Clear viewing is done through the eyepiece.
Description

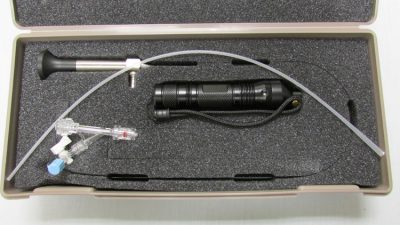

The handle is a portable light source that attaches to the mount on the bottom of the scope. It is powered by replaceable batteries and the light source gives enough illumination to clearly see images of tissue or foreign bodies.
The ocular is a standard size and will accommodate an endoscope camera to view the images on a computer. AMC sells a compatible endoscope camera with this functionality.
The insertion tube is waterproof and can be soaked for disinfection. The scope is available in both 10” and 20” lengths.
This is an excellent tool to allow the practitioner to view hard-to-reach areas such as the nasal cavity of dogs and cats!
Sample Uses
Rhinoscopy – Cystoscopy – Bronchoscopy. These are only a few of the uses for the Nasal Endoscope.
The scope comes complete with a 200 lumen LED light source for illumination.
Specifications
| Feature | Specification |
|---|---|
| O.D. | 1.67mm O.D. (1mm Available) |
| Light Source | Portable LED Light Source Included |
| Lengths Available | 10” (25.4cm) and 20” (50.8cm) |
| Fiber Image | 10,000-Fiber Image Bundle |
| Light Source | ACMI-Storz-Wolf Lightpost |
| Cleaning | Submergible for disinfection |
FAQs
1. What is the Tele-View TV-516 Nasal Endoscope used for?
The Tele-View TV-516 is designed for use in dog and cat nasal cavities, allowing practitioners to view hard-to-reach areas such as the nasal cavity. It can also be used for urethra work.
2. What is the diameter of the scope?
The standard outer diameter is:
-
1.67 mm O.D.
3. What lengths are available?
The scope is available in:
-
10” (25.4 cm)
-
20” (50.8 cm)
4. What type of imaging system does it use?
The scope features a 10,000-fiber image bundle and is an ocular fiber scope.
5. How are images viewed?
Clear viewing is done directly through the eyepiece (ocular).
6. Can images be displayed on a computer?
Yes – with the purchase of our Nasal Scope Camera.. The ocular is a standard size and will accommodate an endoscope camera to view images on a computer. AMC sells a compatible endoscope camera for this functionality.
7. What type of light source does it use?
The scope includes a portable LED light source.
It features an ACMI-Storz-Wolf lightpost connection.
8. How is the light source powered?
The handle contains a portable light source powered by a battery that can be charged through the included wall outlet charger.
9. What does the light source illuminate?
The light source provides enough illumination to clearly view:
-
Tissue
-
Foreign bodies
10. Is the insertion tube waterproof?
Yes. The insertion tube is waterproof and can be soaked for disinfection.
11. Can the scope be submerged for cleaning?
Yes. It is submergible for disinfection.
12. What makes this scope useful for veterinary practice?
It allows practitioners to clearly visualize hard-to-reach areas such as the nasal cavity in dogs and cats.
