Tele-View Equine USB Endoscope and Gastroscope

Contact for Price
Contact AMC or your Veterinary Distributor for Pricing Information

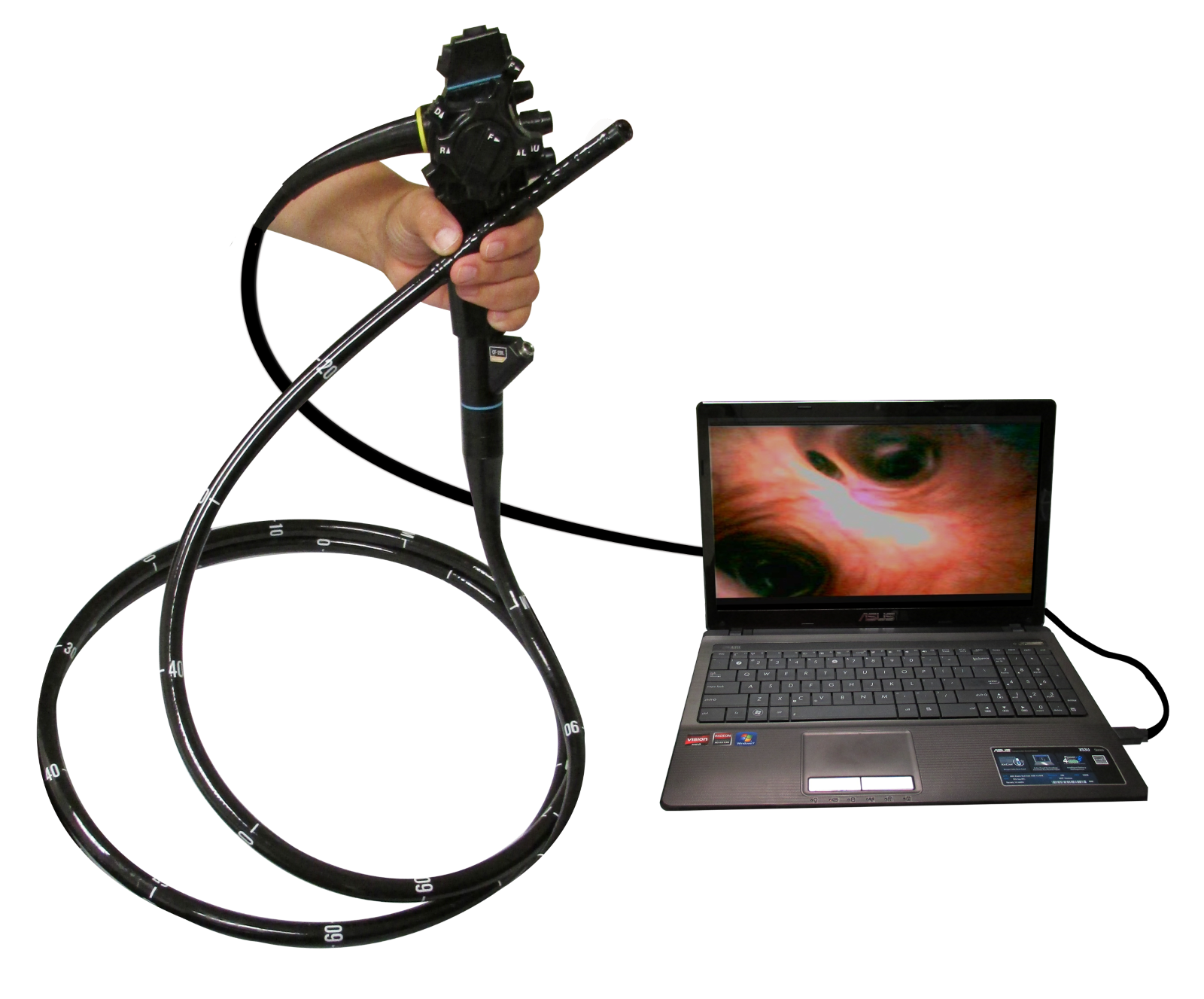

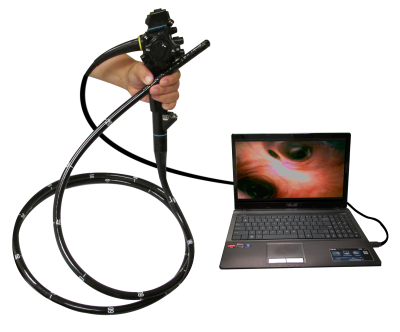

The Tele-View USB Endoscope/Gastroscope is a ‘plug and play’ device that makes endoscopy ‘simple and easy.’ These scopes work with Windows Computers, Laptops and Tablets as well as Android Devices. The high-resolution sensor and super-bright LED give excellent clarity and illumination. The scopes come in sizes for small animals and equine patients.

Description

With this innovative design, there is no need for a processor, light processor, special monitor or a storage rack. The Tele-View Endoscope/Gastroscope is excellent for both, mobile and in-clinic endoscopy. The Tele-View USB Endoscopes come in 1.0m, 1.5m, 3.0m and 3.5m lengths with 8.7mm, 9.8mm or 12.6mm diameters. The insertion tube includes a high resolution camera sensor, super-bright LED lights, a working channel, an irrigation channel to clean the lens and an air-water channel for lavage or insufflation. A portable rechargeable air-water pump is sold separately. Now you can quickly and easily complete endoscopic procedures without having to carry awkward and bulky equipment!

These video scopes are very robust as they have no fibers to break! The scopes weigh only about 2 lbs. (1 kilo) and can easily be transported from one client location to another.

The software is included at no charge and the high resolution images and video are automatically saved to the computer hard drive. From there, they can be attached to the patient record or sent to the client by e-mail, Dropbox or Google Drive.

Features:

  • Quick and Easy Endoscopy
  • For Equine use
  • High Resolution with Super Bright LED’s
  • Display on Computers or Tablets*
  • Air, Water & Working Channels
  • No Processor or Light Processor Needed
  • Easily Record Video to Hard Drive
  • Available in 1.0m, 1.5m, and 3.0m Lengths (Custom Lengths Available)
  • Weighs only 2lbs (1 kilo)

Benefits:

  • Show Clients Pathology in ‘Real-Time’
  • No Bulky Processor, Light Processor, Monitor or Rack To Carry
  • More Robust and Durable Than Fiber Scopes
  • Low Cost
  • Assembled and Serviced in the US

Equine Sizes and Models:

  • TV-571: 1.0m x 9.8mm diameter: Excellent for equine endoscopy to the bronchi.
  • TV-574: 1.5m x 9.8mm diameter: Excellent for equine endoscopy into the lungs.
  • TV-576: 3.0m x 12.6mm diameter: Excellent for equine gastroscopy
  • TV-577: 3.5m x 12.6mm diameter: Excellent for equine gastroscopy and duodenumoscopy
  • TV-801: Optional Air-Water Pump

Wireless Equine Endoscope / Gastroscope

Wireless Equine Endoscope / Gastroscope

We are pleased to announce that you can now add a wireless transmitter to the Tele-View USB Video Endoscope/Gastroscope Equine.

Pumps Available (sold separately)

• Battery or Electric Models Available
• 110 Volt or 220 Volt Models Available

All the pump combinations available.
• TV-801: Battery Air-Water Pump in Soft Case
• TV-801HC: Battery Air-Water Pump in Hard Case
• TV-801HCE: Electric Air-Water Pump in Hard Case
• TV-802: Battery Air-Water-Suction Pump in Hard Case
• TV-802: Electric Air-Water-Suction Pump in Hard Case

For Small Animal use, click here to see Small Animal Models and Sizes.
For Mixed Practices, the Small Animal Version is Perfect (click here)

  • TV-570SC: 1.0m x 8.7mm diameter with suction connector: Excellent for equine airways to the bronchi and for cats to medium size dogs.
  • TV-573SC: 1.5m x 8.7mm diameter with suction connector: Excellent for equine airways into the lungs and for cats to large size dogs.

TV-801 Rechargeable Air-Water Pump Soft Case

TV-801HCE Electric Air-Water Pump Hard Case

TV-802E Electric Air-Water-Suction Pump Hard Case







Additional information

Weight 3 lbs
Dimensions 18 × 18 × 15 in

Specifications

Feature USB Endoscope/Gastroscope Specifications
Lengths 1.0m, 1.5m or 3.0m
Insertion Tube Diameter 8.7mm, 9.8mm and 12.6mm
Working Channel Diameters 8.7mm & 9.8mm Tip: 2.2mm 12.6mm Tip: 2.8mm
Light Source High Intensity White LEDs
Light Source Power Supply USB Computer Connection
Working Temperature 32º-140ºF (0º-60ºC)
Recording Video Format .avi
Weight 2 lbs (1.0 Kg)
Weight with Case 8 lbs (3.6 Kg)
Weight of Air/Water Pump 10 lbs (4.5 Kg)
Computer Requirements Recent Model Computer (less than 5 years old) with at least 4GB RAM and Video Processor Capabilities

Testimonials

The Tele-View USB Gastroscope exceeded expectation in almost every way. Although price was the initial draw of this scope, its portability and ease of use is unequalled. The Tele-view USB’s 13mm diameter fits easily up the nostril, but resists unwanted bending as it passes into and down the esophagus. Connection to a standard laptop via the single USB cable both powers the scope and records high quality video. The option of using a hand pump and syringe for insufflation and flushing, provides for exceptional portability in the field. I’ve used many gastroscopes over the years, and, this is by far the most portable and best balance of affordability and functionality that I have seen.
Shaun McKane, BVSc BSc(vet) PhD Dip. ACVIM Dip. ECEIM MRCVS, Cotts Farm Equine Clinic, Narberth, UK



We used the Tele-View 3 meter Gastroscope for a recent study. It had very good illumination and resolution and allowed for good visualization of the entire stomach. The system worked as well or better than any other I’ve used. We scoped 33 horses one morning and everything went smooth with no problems. The whole process worked well.
 Scott McClure, DVM, PhD, Midwest Equine, Boone, IA



The picture and video ability is impressive to clients. The three meter scope has, as expected, been a major surprise to clients. Ulcers are a big thing with all clients, especially the barrel racers. We don’t advertise, they do it for us! Trainers love the living color and the excellent detail the small scope has. They are not used to seeing the throat themselves. Had a trainer watch me scope the barrel horses yesterday and he remarked he’d never seen the pathology that clear before. I think the scopes will rank up there with transitioning from x ray plates in leather bags in the backseat to going to digital x-ray and instant viewing!
J.W. Clement, DVM, Lake Hamilton Equine Associates, Hot Springs, AR



The Tele-View 3M Gastroscope has been an excellent tool for our practice. Set up in the field is quick and easy. The picture is of excellent quality, comparable to the fiber optic gastroscope I previously used in a clinic. Due to the image quality and the ability to use with any laptop or tablet, client education and communication is simple and easy while performing the procedure. In fact, the Gastroscope works so well, we’ve scoped 70 horses in the first three months! Lastly, customer service and support has been exceptional.
– Maia Aerni, DVM, Neil H Gray DVM, P.C., Burbank, CA



One of the best investments we have made as a practice! Great image quality and portability. Unmatched customer service and a great overall product! The unit is already paying for itself faster than we expected! Highly recommended for the ambulatory practitioner.
–Jim Meyer, DVM, Sonoma Marin Veterinary Service, Petaluma, CA



I have been using a 3.0 meter scope purchased from Advanced Monitors for about a year now to diagnosis gastric ulcers in the horse. The durability of the scope withstands the constant stress of a mobile equine practice. The software is easy to use and provides a clear picture for the client in the field. Incorporating the scope has been a practice builder in diagnosing ulcers and incorporation a treatment plan. My practice is largely composed of performance horses and the diagnosis and treatment of gastric ulcers is a game changer.
Scott Meyer D.V.M., M.S., Desert Mountain Equine, Queen Creek, Arizona



I use your scopes on a daily basis now and am very glad. The USB-scope is easy to use in all circumstances and it does not need any equipment: the scope and the laptop are enough. This is a big advantage as I can scope the horses everywhere I want and do not have to take them towards the endoscope tower…really cool. The quality of the videos is great also. Lasering with it is perfect.
– Dr. Olivier Brandenburg, Dr’s. Leser, Korner & Brandenburg, Tierklinik Wiedaugrund, Rotenburg, Germany



I Bought 1M and 3M recently and love them. Great customer service.
Randy Lewis, DVM, Key City Veterinary Clinic, Abilene, TX



Rick, thanks for thinking about us. I have made many equipment purchases in my 38 year veterinary career, some good and some not so good. One of my luckiest discoveries was your booth at NAVC and one of my best purchases was your scopes and you can quote me on that.
 Dr. Reed Harrison, Rose Hill Veterinary Clinic, Rose Hill, Kansas



We happened upon your product because we were looking for an affordable endoscope that was easily portable for an ambulatory practice. Not only did we get a system that is user friendly, light and portable and has an excellent image, we found a great support team. Thank you.
 Mich Ferraro, VMD, Millbrook Equine Veterinary Clinic, Millbrook, NY



We have been very pleased with your endoscope system! It has worked well for us with both dogs and cats. We have been doing a lot of upper and lower GI studies as well as BALs too. System works great, is easy to operate, and takes great pictures and videos to show the clients.
 Dr. David Ihrke, Colonial Manor Animal Hospital, Homer Glen, IL 60491
