Tele-View Dynamic Equine Exercise Endoscope

Dynamic Endoscopy is the Gold Standard for Diagnosing Upper Airway Restriction Problems

Dynamic Equine Exercise Endoscope

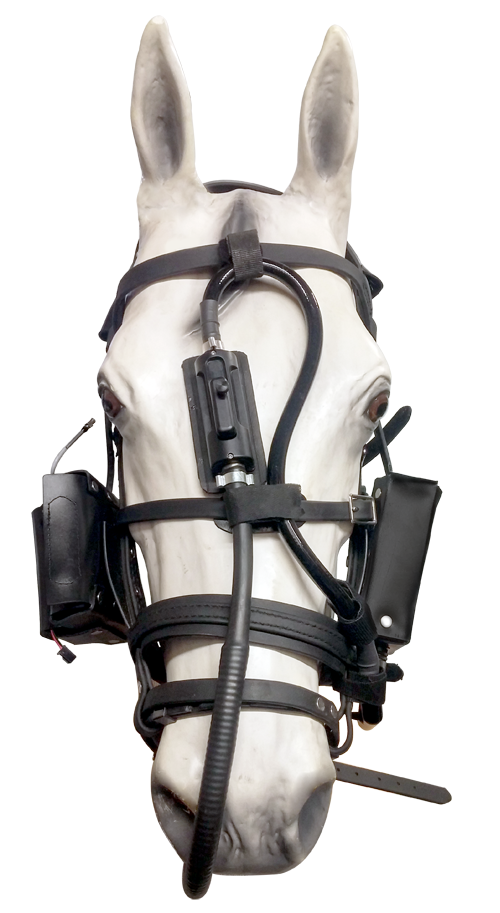

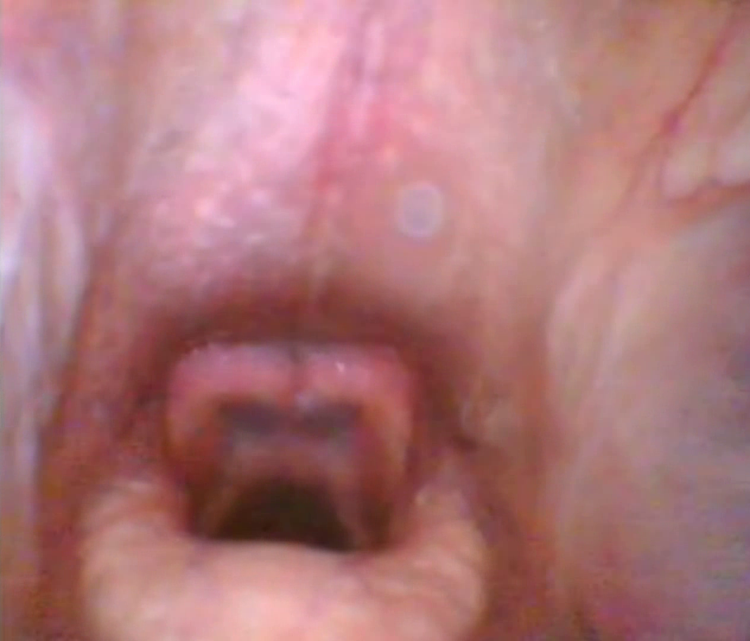

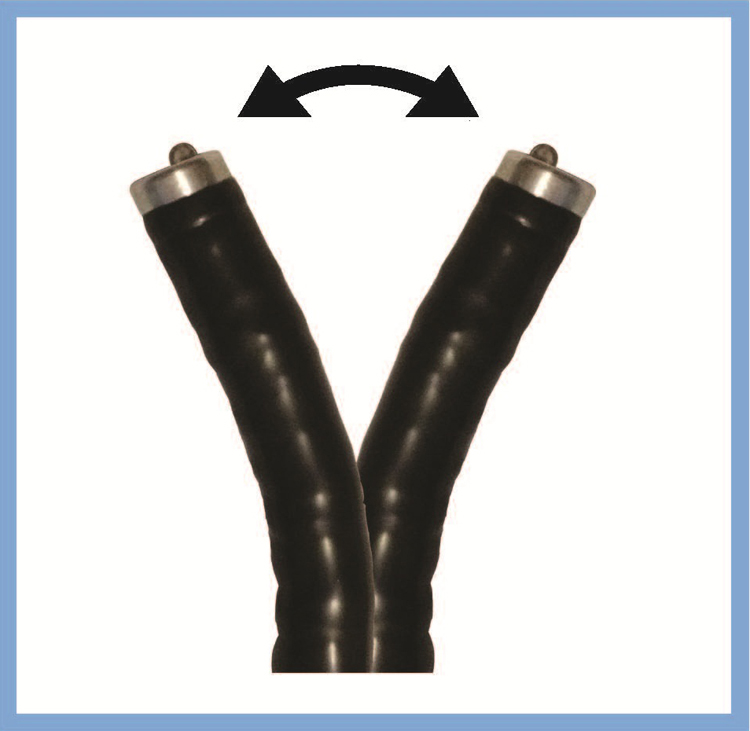

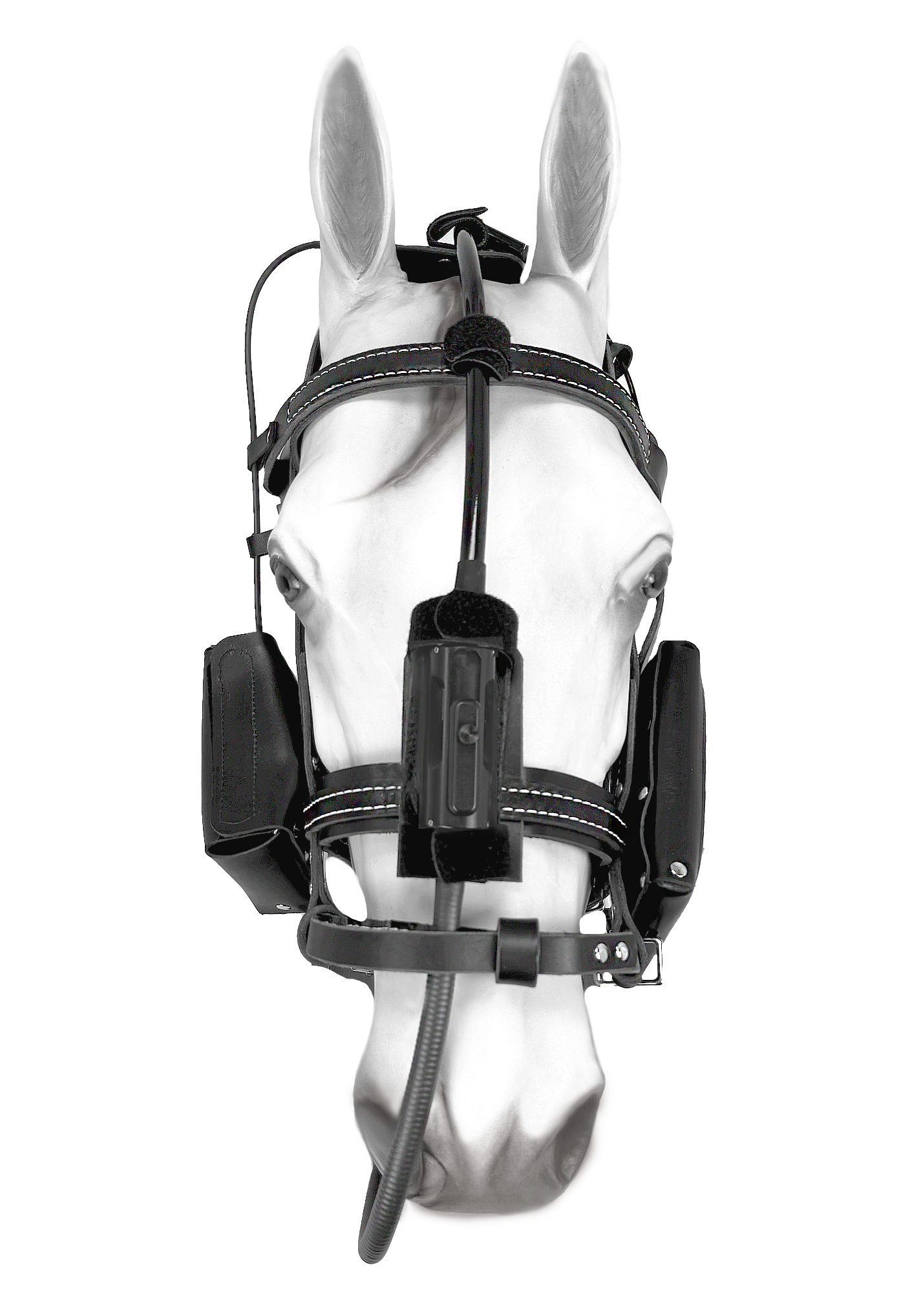

The Tele-View Dynamic Equine Exercise Endoscope is an easy-to-use method of analyzing upper airway restriction problems during exercise. The Endoscope System is lightweight and harness-mounted and can give dynamic endoscopic results in as little as 30 minutes. For the TV-506 Articulating Model, the insertion tube starts in a straight position when it is placed into the horse’s nasal cavity. After placement, it is then articulated down with the camera tip positioned above the larynx. This placement gives an excellent view of the epiglottis and larynx, both, at rest and during workouts. The recording camera of the TV-506 records both audio and video. The system utilizes a high definition, wide angle sensor to record high quality video. A microphone in the recording camera also records the horse’s breathing during the workout. The audio and video is then saved to the SD card located in the recording camera and it can then be transferred to a computer for viewing.


>> Training <<

Call (877-838-8367 x105) or E-mail To Order Tele-View Dynamic Equine Exercise Endoscope,

Includes:

  • Custom-Built Harness
  • Custom Insertion Tube
  • Custom Recording Camera
  • Manual & Automatic Irrigation Flushing System
  • Digital Video Recorder with SD Card
  • Hard-Sided Foam-Lined Travel Case
  • USB & Video Cables

Functions:

  • Real-Time Imaging
  • Record
  • Snapshot
  • Video Output Format: NTSC/PAL
  • Digital Video Recorder Battery: Rechargeable Li-Polymer 3.7V
  • Digital Video Recorder Power Supply: AC 100-240V

Specifications:

  • Harness Weight: 4 lbs (1.8 Kg)
  • Endoscope Cable Width: 9/16?
  • Endoscope Cable Length: 42” (106 cm), Custom Lengths Available
  • Light Source: High Intensity White LEDs
  • Batteries: Rechargeable 6V NiMH
  • Power Supply: AC 110v or 220v
  • Working Temperature: 32º – 140ºF (0º – 60ºC)
  • Video Screen: 3.5” High Resolution TFT
  • SD Card: 4 GB



Connections:

  • Mini-USB
  • Video Out
  • 5 Volt AC In
  • SD Card Port

Features

  • Lightweight, Harness-Mounted System
  • High Definition-Wide Angle Sensor

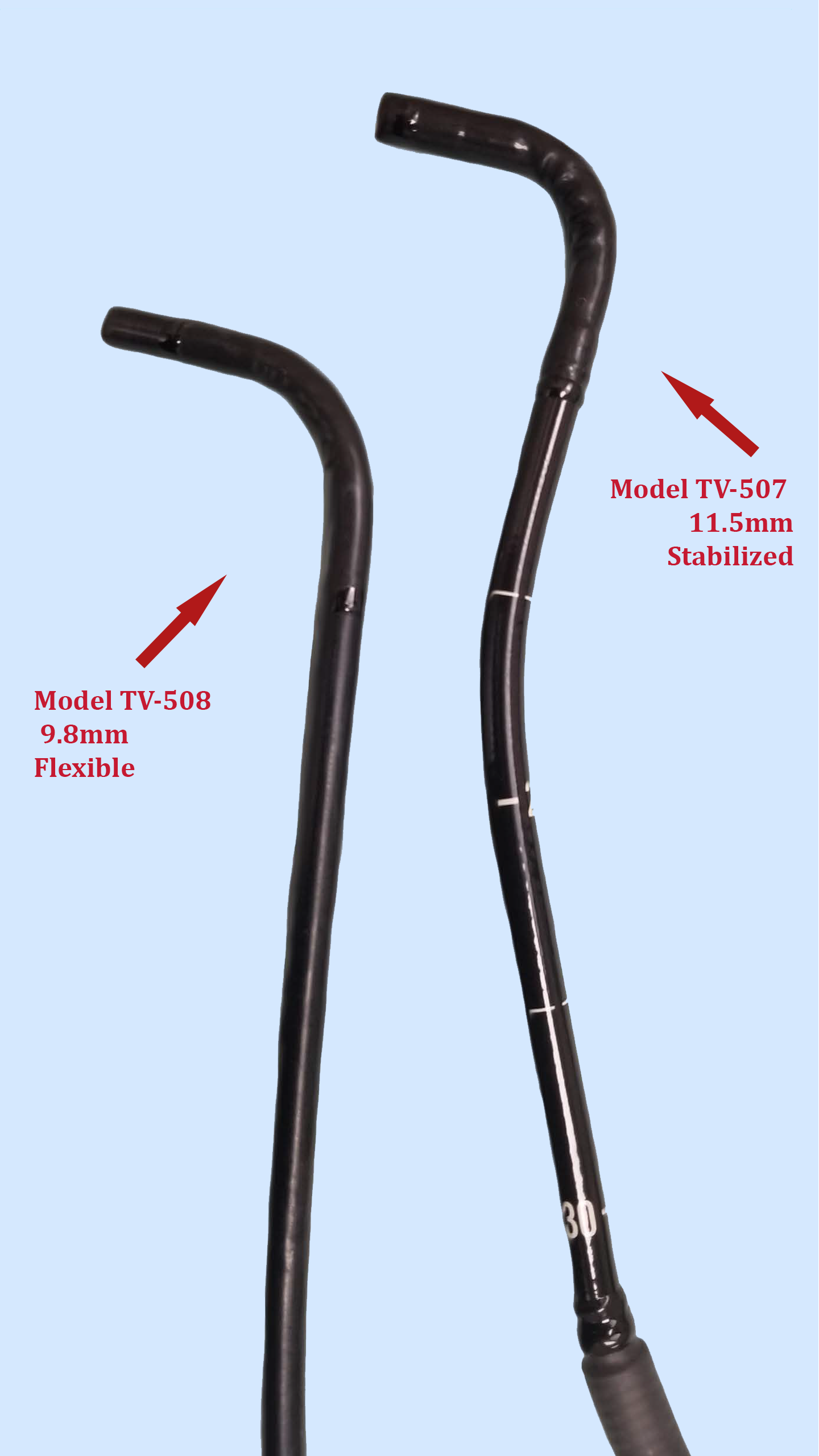

  • Stabilized Insertion Tube Prevents Flutter
  • Records both audio and video
  • Simple, Uncomplicated System
  • System is Rider Independent
  • Record Audio & Video to SD Card



Benefits

  • Gold Standard for Diagnosing Upper Airway Restriction Problems
  • Results in as Little as 30 Minutes
  • Records High Quality Video & Audio
  • Share with Clients and Trainers
  • Utilize During Normal Workouts with Standard Training Equipment
  • Safer Than Treadmills
  • Affordable



Additional Information



For more information or pricing, contact the following:
US/Canada: 877-838-8367 x105
International: 01-858-536-8237 x105
Email: [email protected]



Demo Videos
